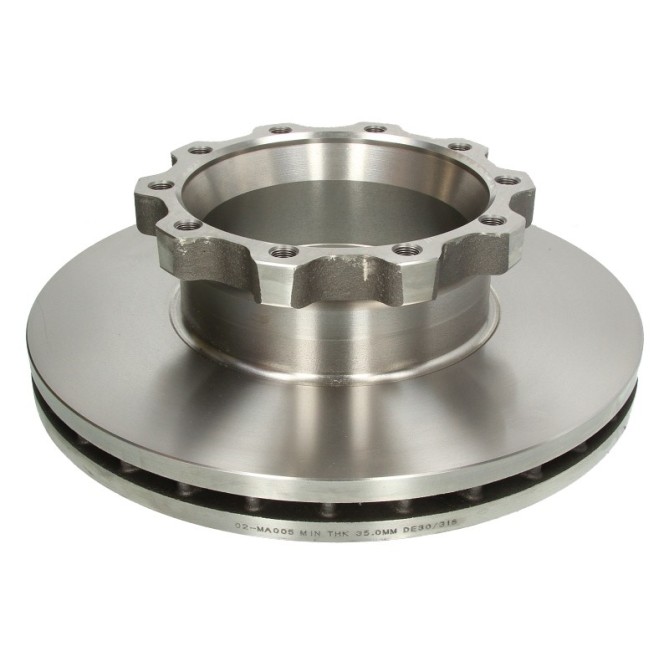

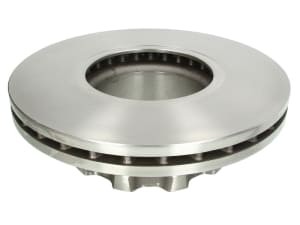

Disc de frână spate L/R (432mmx45mm) compatibil cu MAN E2000, F2000, L2000, LION´S STAR, M 2000 L, M 2000 M, TGA, TGM I, TGS I, TGX I 01.94-

Fisa tehnica

Weight

36.94
kg

Inter Cars code

B49021

Product label

Print labelIndex02-MA005NameBrake discManufacturerSBPMeasurement unitpieceImporterInter Cars ROCountry of originChina

Name

Brake disc

Manufacturer

SBP

Measurement unit

piece

Importer

Inter Cars RO

Country of origin

China

Thread Size

M16

Fitting position

Rear
Rear Axle

Thickness

45.0 mm

Thickness [mm]

45.0

Height [mm]

135.0

Number of holes

10.0

Hole diameter

235.0 mm

Recommended quantity

2

Fitting side

Right /


·

Left

Outer diameter

432.0 mm

Outer Diameter [mm]

432.0

Total height

135.0 mm

Number of fitting holes

10.0 pcs

Disc type

Ventilated

Locating hole diameter

208.0 mm

Brake disc with bearing

No

Brake Disc Thickness [mm]

45.0

Brake Disc Type

Vented

Minimum thickness

35.0 mm

Minimum thickness [mm]

35.0

Bolt Hole Circle Ø [mm]

235.0

Centering Diameter [mm]

208.0

Hub Bore Diameter [mm]

208.0

Thread Pitch [mm]

1.5
